DuVoice NANO v1 - D525
Specifications
| Processor | Intel Atom D525 1.6Ghz Dual Core CPU Hyper-threading Enabled |
| Motherboard | Foxconn NT-535 Mainboard |
| Northbridge | Intel NM10 Chipset |
| Southbridge | N/A |
| Memory | 2GB |
| Integrated Graphics | Intel HD 3150 Graphics + Broadcom HD decoder |
| Hard Drive | 40GB or larger SSD |
| Keyboard | N/A |
| Pointing Device | N/A |
| Audio | Integrated Realtek HD Audio, Headphone out, Line/SPDIF out, Microphone in |
| Dimensions | 1“H x 7.5”W x 5.5“ L |
| Power Supply | 19V 3.42A Power Adapter |
| LAN | Realtek 10/100/1000 Fast Ethernet 802.11 b/g/n 2.4Ghz Wifi |
| Slots | N/A |
| USB | 6 USB 2.0 Ports |
| Onboard Peripherals | SD/SDHC/MS/MS Pro/MMC 5 in 1 Card Reader VGA/HDMI Video Connectors |
| Onboard IDE | N/A |
| Onboard SATA | 1 SATA II Connector |
| Operating System | Windows 7 Professional 32bit SP1 |
NANO Error codes

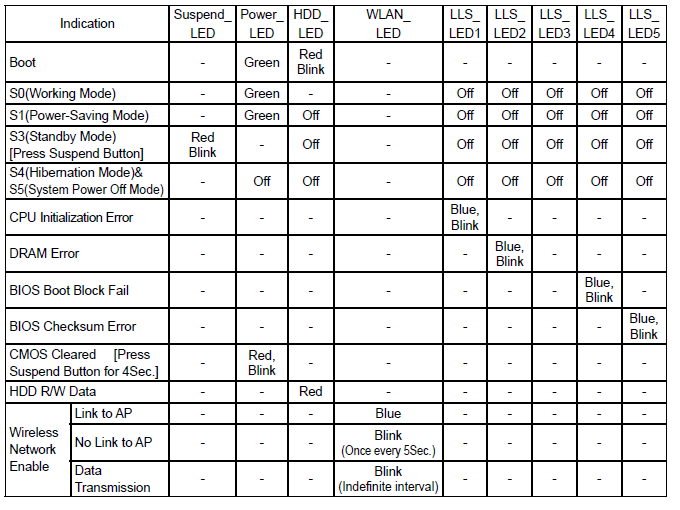

The DV-Nano system do not use standard beep codes, it uses a sectioned light bar. This is how to read the error codes:

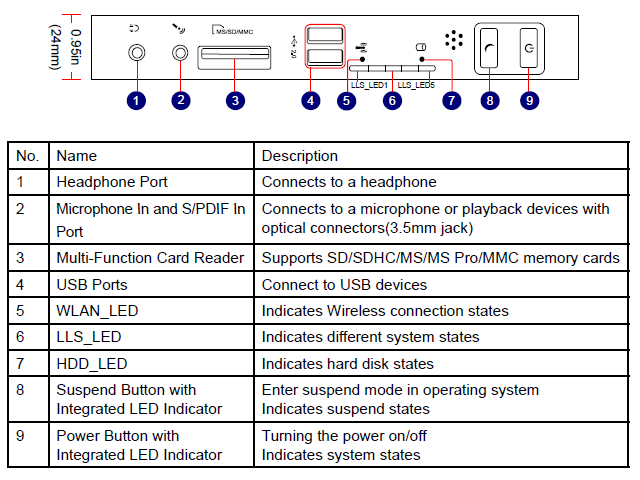

Below is the layout of the front of the Nano system. The light bar is number 6, as you can see it is split into 5 sections. The error codes, along with other system states, are described below.
