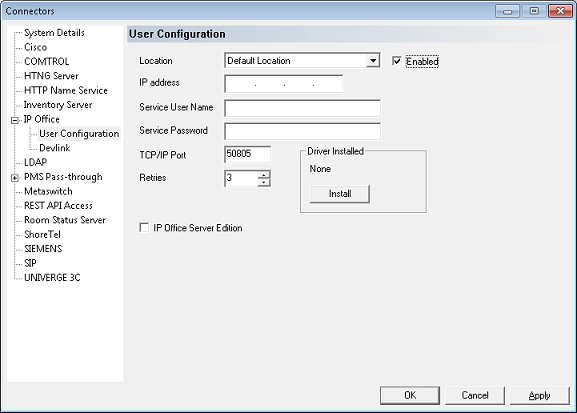

Setting
|
Description
|
Location
|
Select the location whose settings you want to review or edit.
Each location has its own settings and therefore can be connected to a different switch. If you have multiple locations connected to the same PBX, you will need to replicate the configuration for each location.
|
Enabled
|
Check this box to enable the connection for the selected location. To disable the connection, uncheck the box.
|
IP Address
|
Enter the IP address assigned to the IP Office associated with the selected location.
|
Service User Name
|
Enter the user name required to login to the IP Office associated with the selected location.
|
Server Password
|
Enter the password required to login to the IP Office associated with the selected location.
|
TCP/IP Port
|
Port number used to connect to the IP Office.
This number should not changed unless you are required to do so by Avaya.
|
Retries
|
Number of times to retry sending a change request to the PBX if the first attempt fails for some reason.
Default is 3 retries (for a total of four attempts).
|
IP Office Server Edition
|
Check this box if you are using an Avaya IP Office Server Edition.
|
Driver Installed
|
Displays the version number of the installed driver, or None if no driver has been installed.
If you need to install the driver, click the Install button. This will launch the IP Office Driver Install Setup Wizard which will guide you through the steps to install the driver.
|
