Navigation: System Configuration > Port Management > Editing ports >

Edit a fax port

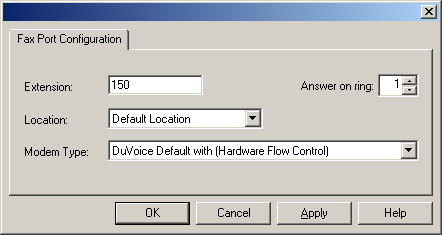

To edit a fax port, double-click on the port in the main window. This will open the Fax Port Configuration dialog, shown below.

SYS0011

This dialog provides four settings you can edit:

•	Extension—the physical extension number connected to this fax port. This value must be set correctly or the system will not be able to transfer incoming fax calls to this port.

•	Answer on ring—the number of rings to answer on.

•	Location—the assigned location.

•	Modem Type—the modem type; determines the initialization string, among other things. The DuVoice Default with (Hardware Flow Control) option is adequate for most installations.

To save your changes, click Apply or OK. Click Cancel to close the dialog without saving any changes you have made since you last clicked Apply.

Note: If the fax feature is not licensed, or if this is a SIP system, or if fax support is not installed, you will not be able to create, delete or edit fax ports.
