The DV2000/DV4 can link to a Cisco CUCM PBX using a TCP connection where the VMS is the client. This link uses the protocol and features listed in the table below:
Link Type
|
Protocol Used
|
Log File Prefix
|
Features Supported
|
TCP client
|
Cisco AXL interface
|
CISCO
|
Name change, DND, Set user rights group (phone COS)
|
Configure the Link
To configure the physical link to the Cisco PBX, follow these steps:
1. Using Activity Monitor, stop the voice mail service.
2. Run the System Configuration application and select Features | Connectors.
3. Select the Cisco property page.

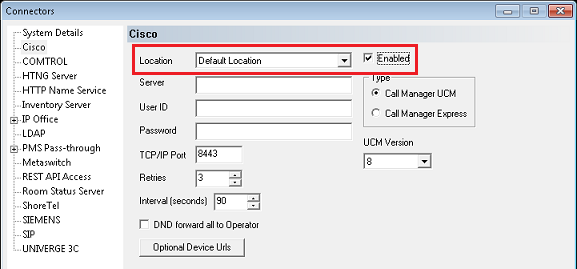

| 4. | Select the location for this PBX. In most cases the default selection, Default Location, is the correct choice. Then check the Enabled box to enable the connector for the selected location. |

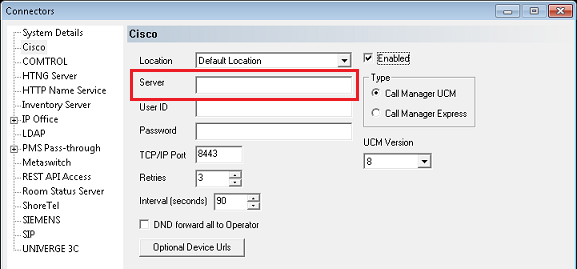

| 5. | Enter the server name or IP address assigned to the PBX. The VMS connects to the PBX as a client, so this setting is required. |

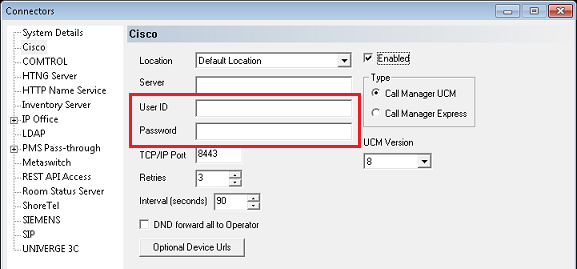

| 6. | Enter the user ID and password of the DuVoice account you created in the CUCM. |

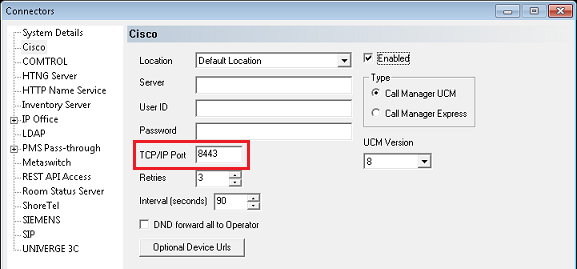

7. The TCP/IP Port must be set to 8443 unless you changed it in the Cisco configuration.

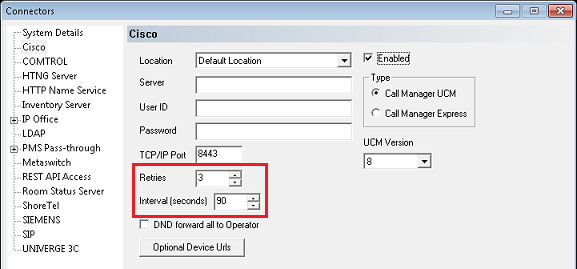

| 8. | Set the number of times to retry sending a change request if the first attempt fails and the number of seconds to wait between retries. The default value is 3 retries (for a total of 4 attempts) with an interval of 90 seconds between each attempt. |

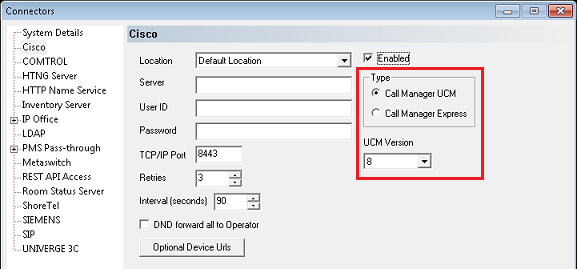

| 9. | Verify Call Manager is selected in the Type section. Call Manager Express is not currently supported. Then use the selection box to select the UCM version number. |

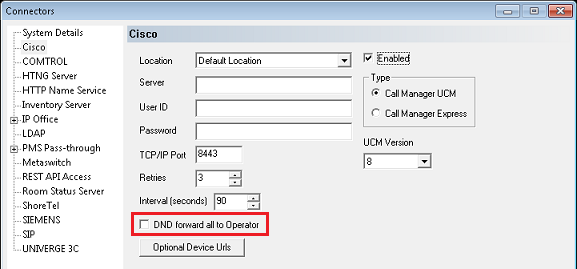

10. If you wish all calls to an extension with DND enabled to be forwarded to the operator, check the box provided.

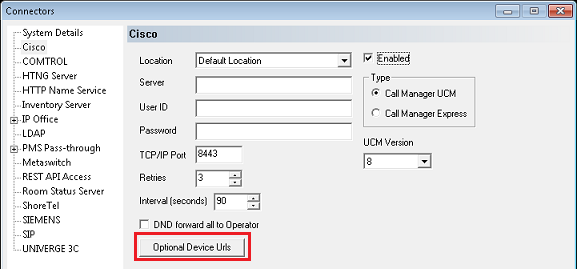

| 11. | If you need to customize the URLs assigned to the buttons on the Cisco IP phones in the guest rooms, click the Optional Device URLs button. |
| 12. | The URL settings dialog box and settings are explained in detail on the Cisco connector configuration page. Edit the settings as directed on that page. |
| 13. | Click Apply to save your changes without closing the dialog. |
| 14. | Repeat steps 4 through 10 for each location on the VMS that uses the same Cisco PBX. |
| 15. | Click OK to save your changes and close the Connectors dialog. |
| 16. | Continue to the next section to configure the hospitality settings. |
Configure the Hospitality Phone Control Settings
After you have configured the connector settings for the Cisco link, you need to configure the hospitality service to use the Cisco connector and you also need to configure the phone control settings.
To do so, follow these steps:
| 1. | Select Features | Hospitality. |
| 2. | If prompted, select the PMS instance (as shown below). This dialog is only displayed if you are licensed for more than one PMS instance. Otherwise, skip to step 3. |
3. Select the Phone Control property page.

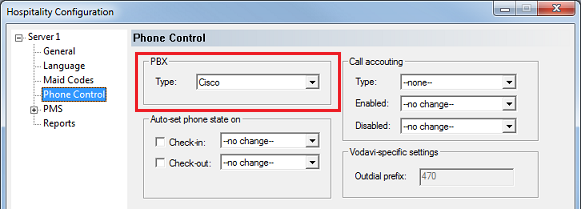

4. In the PBX section, use the Type drop-down list box to select Cisco.
| 5. | If you are not using Hansen CASH or Metropolis call accounting, skip to step 6. If you are, use the Type drop-down list box in the Call accounting section to select the call accounting software. Then use the Enabled and Disabled boxes to select the appropriate COS (or call restriction level) to send to the PBX when the call accounting software signals that the room phone should be enabled or disabled. |

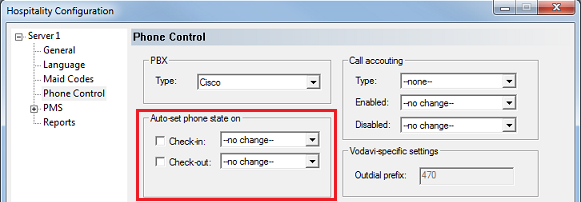

| 6. | In the Auto-set phone stat on section: If your PMS sends messages to the VMS to change the phone COS, or if you enabled the call accounting settings in step 5, make sure both check boxes are unchecked. However, if you aren't using call accounting and your PMS protocol does not offer a message command for setting the phone COS, you may wish to enable both options and use the associated drop-down list boxes to select which phone COS (or restriction level) to send to the PBX when the room is checked in and when it is checked out. The --no change-- option acts the same as unchecking the check boxes. |

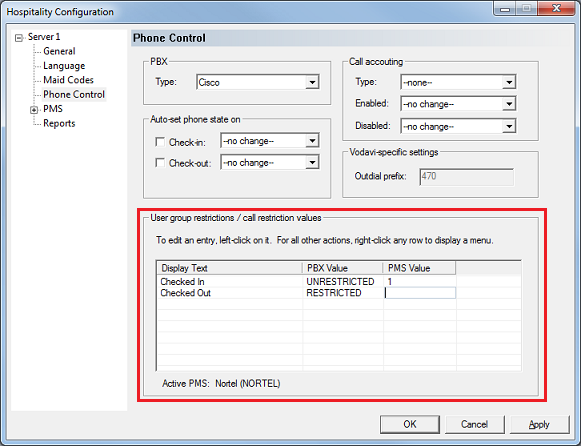

| 7. | In the User group restrictions section: When you selected Cisco in step 4, above, the system automatically reset the entries in this table to default values. You may need to change the PBX values to match the appropriate user rights groups that you defined on your PBX. You will also need to enter the correct matching values for your PMS in the PMS Value column. To enter a PMS value, click in the box under the PMS Value heading for the row that has the matching PBX value. Then enter the value exactly as the PMS will send it (typically, this will be a single digit number). Repeat for each PMS value. Each PMS value must be entered in the table only once; it is not necessary to enter a PMS value for every PBX value. You can change the Display Text as well if you wish; this is what will be displayed in InnDesk. |
8. Click OK to save your changes and close the dialog.
9. Once you are finished with all configuration changes, close System Configuration.
10. Using Activity Monitor, restart the voice mail service.
|
