Configure the serial link

Previous pageReturn to chapter overviewNext page

To configure the PMS serial connection settings, follow these steps:



1.  Using Activity Monitor, stop the voice mail service.



MSC0108



2.  Run the System Configuration application and select Features | Hospitality.



SYS0008



3.  If prompted, select the PMS instance (as shown below).  This dialog is only displayed if you are licensed for more than one PMS instance.  Otherwise, skip to step 4.



SYS0076

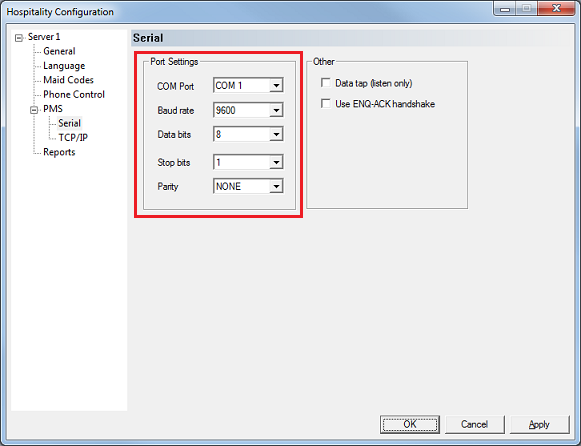

4.  Select the PMS property page (in the tree view on the left).



MSC0134



5.  In the section Port Settings, use the COM Port drop-down box to select the COM port to use.

6.  Similarly, use the Baud rate, Data bits, Stop bits and Parity drop-down boxes to select the settings that match what your PMS is using.

7.  Click Apply to save the setting without closing the dialog.

8.  If you are finished configuring hospitality settings, click OK to save and close the dialog.

9.  Once you are finished with all configuration changes, close System Configuration.

10.  Using Activity Monitor, restart the voice mail service.



MSC0108
