Configure the TCP link

To configure the PMS TCP/IP connection settings, follow these steps:

1. Using Activity Monitor, stop the voice mail service.

MSC0108

2. Run the System Configuration application and select Features | Hospitality.

SYS0008

3. If prompted, select the PMS instance (as shown below). This dialog is only displayed if you are licensed for more than one PMS instance. Otherwise, skip to step 4.

SYS0076

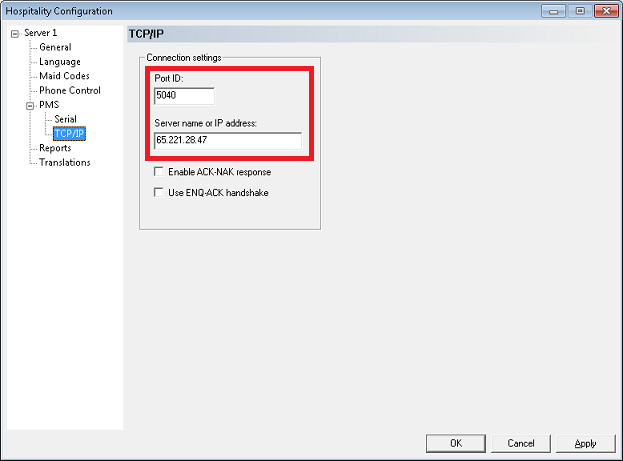

4. Select the PMS property page (in the tree view on the left).

MSC0135

5.	In the section Connection settings, use the Port ID edit box to enter the TCP port number that the PMS expects to be used for the connection.

6.	If you are using the TCP Client connection type, use the Server name or IP address edit box to specify the IP address of the PMS. If you are using the TCP Server connection type, this box can be left blank.

7.	Click Apply to save the setting without closing the dialog.

8.	If you are finished configuring hospitality settings, click OK to save and close the dialog.

9.	Once you are finished with all configuration changes, close System Configuration.

10.	Using Activity Monitor, restart the voice mail service.

MSC0108
